ConFoot – the container support legs – provide a unique, portable solution for handling containers worldwide. This innovative system enables the rapid unloading of containers with zero downtime, ensuring maximum convenience, safety, and efficiency when dealing with containers—whether for storage, loading, or transport. ConFoot features a practical design that simplifies container handling for both individuals and businesses, making it ideal in environments where time and efficiency are critical. With various models such as CF, CFP, and CFU, ConFoot adapts to the specific needs of users across different industries.
ConFoot Container Support Legs and Variants
ConFoot employs a patented design that combines a lightweight structure with the robustness required to handle heavy containers. Each model is crafted with the specific needs of users in mind.
ConFoot CF
This is the standard model with a carrying capacity of 34 tons, weighing only 24 kg per leg, and featuring an adjustable range from 1,043 mm to 1,448 mm. It is ideal for universal use and the storage of tank containers. This model can be easily operated by one person, significantly simplifying logistics operations.
ConFoot CFP
Designed for loading ramps with a carrying capacity of 30 tons, this model allows for the full opening of container doors for easy access. Its design is optimized to be positioned directly against the loading ramp, enhancing efficiency in loading zones.

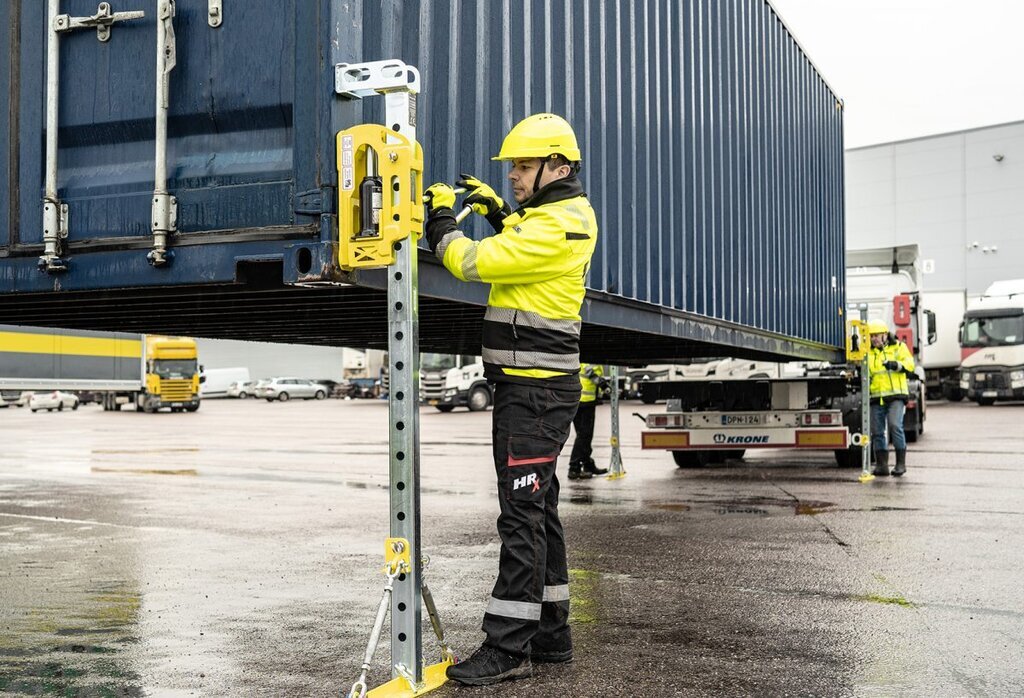

ConFoot CFU
This model is created for lifting and lowering containers, with a carrying capacity of 20 tons. It is designed to allow a container to be lifted from a trailer and lowered to the ground, making it ideal for temporary storage and stowing. The system comprises multiple components, with each leg weighing 46 kg and featuring an adjustable range of up to 1,500 mm.
Additional Features and Accessories
ConFoot shipping container legs are compatible with various accessories that enhance functionality and safety when handling containers. These accessories offer even greater flexibility and protection during storage and handling, making it a versatile solution for a wide range of applications.
Practical Uses for ConFoot Legs
Thanks to its various models, ConFoot legs are suitable for different types of containers and situations. Whether you need a standard solution or a specialized application, ConFoot shipping container legs provide the right product.
Efficient Loading and Unloading of Goods
ConFoot legs offer easy access to the container’s contents right on-site. This is ideal for companies that do not have access to loading ramps or need to quickly unload goods in the field. With ConFoot legs, you can position the container exactly where needed and begin unloading without unnecessary delays.
Mobile Storage Solutions
Need temporary storage on a construction site or during special events? With ConFoot legs, you can quickly and easily set up a stable and secure storage space. Elevating the container off the ground improves ventilation and protects goods from moisture and pests.
Transloading in Remote Areas
In locations where heavy handling equipment is unavailable, ConFoot shipping container legs prove invaluable. They allow for the transloading of containers in remote areas, on construction sites, or in humanitarian aid zones. A single person can adjust the ConFoot legs to meet current needs.
Optimizing Logistics Processes
Logistics companies can streamline their operations with ConFoot shipping container legs. They enable quicker truck turnaround times, eliminating the need to wait for a crane or other heavy equipment. This leads to lower operating costs and improved customer satisfaction through faster delivery of goods.
Positioning Containers at Ramps
Specialized ConFoot leg models allow a container to be positioned directly at an unloading ramp. This is ideal for warehouses or distribution centers where it’s necessary to process large volumes of goods quickly and efficiently.
Where ConFoot Legs Are Useful
ConFoot container support legs have proven effective in various scenarios where efficient container handling is crucial:
- Construction: On construction sites, there is often a need to quickly and efficiently store materials or equipment. ConFoot legs allow for the creation of mobile storage spaces directly on-site without the need for building permanent structures.
- Ports: They enable the rapid loading and unloading of containers without requiring heavy equipment, ensuring smooth operations and minimizing dock time.
- Agriculture: Farmers can use container legs as temporary storage for crops, feed, or tools. The elevated container protects its contents from moisture and pests.
- Humanitarian Missions: In crisis zones or during natural disasters, there is often an urgent need to secure storage for supplies or shelter. ConFoot legs facilitate the rapid deployment of containers in the field.
- Events and Festivals: Event organizers can employ containers on legs as staff facilities, storage areas, or technical rooms. Easy installation and removal save time during both setup and cleanup.
How to Properly Back a Trailer Under a Container
Backing a trailer under a container requires skill and experience, especially when maneuvering to position the trailer accurately. Proper backing is crucial for safe and efficient container loading. Here’s a detailed guide on performing this task professionally and without complications.
Backing Procedure
Position the Truck (Chassis): Align the chassis with the container’s corner castings. Before approaching the container, lower the suspension of the vehicle and chassis to its lowest position.
Back the Chassis: Carefully drive the chassis directly under the container with the mounted legs until the chassis locks align with the corresponding corner castings. Be cautious to avoid contact between the truck/chassis and the ConFoot legs.
Raise the Suspension: Elevate the suspension of the truck and/or chassis to its highest position. Remove the ConFoot legs. Secure the container to the chassis using locks, and you can safely drive away.
Safety While Backing
- Warning Signals: Use hazard lights and sound signals to alert anyone nearby of the ongoing maneuver.
- Clear the Area: Before beginning the backing process, ensure that no individuals are near the vehicle. If necessary, secure the surrounding area.
- Monitor for Obstacles: Keep an eye on both the container and the vehicle’s surroundings. Watch for low-hanging items or uneven ground.
Mistakes to Avoid
- Backing Too Quickly: Higher speeds reduce your ability to respond to unexpected situations.
- Insufficient Environmental Awareness: Failing to check the area around the vehicle can lead to accidents.
- Ignoring Assistant Instructions: If you have an assistant, always adhere to their guidance.
How ConFoot Legs Save Time and Money
Loading and unloading a shipping container can be time-consuming. Smaller companies often need to leave the container on-site for extended periods. By using the CFP container support legs, the driver can position the container directly at a loading ramp and then leave with the truck and chassis. This frees up the vehicle for additional transports, boosting productivity and reducing wait times.
Efficient Logistics Planning
Leaving the container at the loading ramp for an extended period allows companies to plan loading and unloading more effectively. For instance, manufacturers can gradually add goods in an order that facilitates unloading at the destination. This strategy increases the efficiency of the entire supply chain.
Labor and Equipment Savings
Thanks to the lightweight design of the CFP legs (each weighing only 24 kg), a single person can quickly and easily install the entire set. There’s no need for heavy equipment or a large crew, which significantly reduces labor and equipment costs.
Design Tailored to Needs
Full Opening of Container Doors H4
The CFP container support legs replace the original pointed “Y”-shaped legs with an “L”-shaped base. This innovative design allows container doors to open fully—up to 270 degrees—facilitating cargo access and handling. This is especially important for efficient loading and unloading when using forklifts.
Better Space Utilization H4
The redesigned CFP legs enable containers to be positioned closer to loading ramps or within confined spaces. There is no need for extra room to open doors on both sides of the container, which permits more efficient use of space in warehouses and loading areas.
Stability and Safety H4
By combining two CFP legs in the front (door side) with two original CF legs at the rear, maximum container stability is achieved. The rear CF legs provide extra support with an innovative magnetic clamping mechanism that ensures safe handling of heavy loads up to 30 tons.
Practical Benefits in Various Operations and Fields
Increased Fleet Productivity
Drivers can quickly and safely detach the container using the CFP legs, enabling them to get back on the road to complete other assignments. This leads to better fleet utilization and increased transportation efficiency.
Reduced Operating Costs
By using ConFoot container support legs, the need for specialized equipment like cranes is eliminated, resulting in direct cost savings on operations and equipment investments.
Improved Customer Service
The ability to rapidly and flexibly respond to customer needs is essential for success. The CFP legs allow companies to offer more flexible delivery and pick-up times based on client requirements, thereby enhancing overall service.
Customer Satisfaction
Users around the world praise ConFoot legs for their ease of use and efficiency in container handling. For example, in Finland, ConFoot is recognized for simplifying container handling and reducing associated costs. Numerous companies have already experienced significant improvements in their logistics processes by incorporating the ConFoot system. They also appreciate the legs’ robust construction and low maintenance requirements, which contribute to overall operating cost reductions.
Advantages Over Alternatives
ConFoot legs for container handling outperform traditional methods that often require more labor and expensive equipment. Their simplicity and cost-effectiveness make container handling efficient without relying on heavy machinery. Additionally, an innovative magnetic grip ensures maximum safety and reliability during operations.
- General Use and Storage: The CF model is ideal for universal applications, including the storage and handling of tank containers.
- Loading Ramp Efficiency: The CFP model enhances efficiency in loading zones by permitting the full opening of container doors, which streamlines both loading and unloading.
- Lifting and Lowering Options: The CFU model is perfect in situations where the container needs to be lifted off a trailer using hydraulics and lowered to the ground, making it ideal for temporary storage.
How to Unload a Shipping Container with ConFoot Legs
Unloading shipping containers need not be complicated or dangerous. With ConFoot legs, the process is much simpler and safer.
Preparation Before Unloading
- Load Check: Ensure the container is loaded properly. Heavier items should be placed at the bottom for better stability.
- Personal Protective Equipment: Wear slip-resistant footwear with steel toes and appropriate gloves.
- Safety Zone: Establish a designated area around the container to prevent collisions.
- Container Stabilization: Make sure the container is on a solid, level surface and use ConFoot supports for extra stability.
Unloading Process
- Securing Doors: If the container is overloaded, use a strap to limit door opening and prevent cargo from spilling out.
- Opening Techniques: Open the doors carefully, keeping a safe distance, and monitor for any shifting of goods inside.
- Using Equipment: Utilize a forklift or conveyor belt for handling heavy items.
- Maintaining Stability: Use temporary straps to secure the goods during the unloading process.
Safety and Guarantees of ConFoot Legs
ConFoot legs are constructed from high-strength steel, ensuring durability and reliability. Each leg can bear substantial loads, as verified through rigorous strength calculations conforming to standards SFS-EN 1993-1-1, SFS-EN 1993-1-8, and SFS-EN 1494. ConFoot products have undergone extensive testing in line with the CF EN 283 standard, including both static and dynamic tests. These tests are conducted with a safety margin above the maximum allowable load and meet all relevant safety regulations. Additionally, ConFoot legs comply with CE certification requirements and adhere to the European Parliament and Council Directive 2006/42/EC on machinery.
Company and Product History of ConFoot
In the early 2000s, Timo Akela, the CEO of ConFoot, encountered a challenging logistics problem. His close friend, Veikko Salminen, ran a small company that imported furniture from Estonia and supplied it to retailers in Finland. With limited resources and a small fleet, Veikko struggled with an inefficient delivery process.
When Veikko arrived at retailers, staff often had to unload the furniture, and the stores lacked designated storage areas and teams for rapid unloading—resulting in long delays. Some stores even requested that he return the next day to pick up the empty container. This led to as many as three containers being parked simultaneously at different retailers’ loading ramps. With trailers tied up and slow turnover, it was clear a solution was necessary.
Veikko soon realized he wasn’t the only transporter facing these issues. He turned to Timo and asked, “How can we get a shipping container off a trailer without expensive equipment?” This challenge spurred Timo to search for an innovative solution to simplify container handling and boost transport efficiency.
Birth of the Innovative Idea
Timo teamed up with Veikko and his brother-in-law, Terho Närevaara. Together, they began developing the concept of a lightweight, affordable set of legs or supports that would enable the easy removal of a shipping container from a trailer. These supports were designed to attach to the container’s corner castings so that the truck could lower the trailer’s air suspension and simply drive away, leaving the container in place for unloading. This innovation dramatically increased the driver’s productivity and reduced delivery delays.
Challenges in Development
Implementing this idea wasn’t straightforward. The ConFoot team set several key requirements for the final product:
- Lightweight: It had to be easily portable and operable by one person.
- Low Cost: Affordability was crucial for broad market acceptance.
- Long Lifespan: The supports needed to be durable and reliable for regular use.
- Safety: They had to meet all safety regulations as outlined by European machinery directives.
Achieving these goals involved extensive 3D modeling, rigorous load testing, and detailed material strength calculations. While the concept appeared simple, its execution required the collaboration of numerous experts and engineers.
First Prototypes and Their Shortcomings
During development, several prototypes were built, including one shaped like an “I” and others made primarily of aluminum. However, these early models did not meet the team’s high standards—they weren’t strong, portable, or durable enough to withstand the rigors of heavy container transportation.
Breakthrough and Patent of the Innovation
In 2013, after over a decade of intensive research and development, the ConFoot team achieved a breakthrough. They discovered a unique blend of six different types of high-strength, high-quality Finnish steel that enabled the creation of supports meeting all the necessary requirements. The new ConFoot legs were capable of bearing loads up to 26 tons while weighing only 24 kg.
This breakthrough was immediately patented and laid the foundation for the company’s future success. Around the same time, Timo officially established ConFoot Oy in Helsinki, further bolstering the brand’s credibility and professionalism.
Further Improvements Based on Feedback
The ConFoot team continually listened to customer feedback, making additional enhancements along the way:
- Folding Leg Design: For greater portability and ease of storage, the legs were modified to fold easily.
- Height Adjustment: This feature simplified handling and adaptation to different trailer heights.
- Increased Load Capacity: The maximum load capacity was raised to an impressive 30 tons, expanding application possibilities.
These modifications made the product even more attractive to a wide range of customers across various transport and logistics sectors.
Expansion into the Global Market
ConFoot products quickly garnered attention not only in Finland but also internationally. They are now sold throughout Europe, Australia, and other regions. The company’s innovative solutions help carriers worldwide improve efficiency, reduce costs, and enhance safety when handling containers.
Emphasis on Quality and Safety
From the beginning, ConFoot has placed a strong emphasis on product quality and strict adherence to safety standards. Complying with the European Machinery Directive 2006/42/EC was paramount for the team. Through rigorous testing and continuous development, ConFoot has succeeded in creating products that are both highly effective and safe for everyday use.
Ongoing Innovation and the Future of the Company
The ConFoot team remains dedicated to refining its products. Continuous minor adjustments and enhancements ensure they keep pace with growing customer demands and technological advancements. Today, the company offers three different models of ConFoot legs—each designed to meet the specific needs of various customers.
Inspiration for the Entire Industry
The history of ConFoot is a testament to innovation, collaboration, and determination in overcoming challenges. From the initial idea of simplifying container unloading to the creation of a patented product that revolutionizes container handling worldwide, ConFoot’s journey highlights the power of ingenuity and teamwork.
Focused on quality, safety, and customer needs, ConFoot has become a leader in its field. Their innovative products deliver tangible value to transport companies and streamline global supply chains. The company’s future is bright, and its story serves as inspiration for the entire industry.
Visualization
Visit our ConFoot website to view videos and images that demonstrate how easy it is to use ConFoot legs for container handling and how they are applied in real-world scenarios. Detailed visual guides for operating the system are also available to help users better understand how ConFoot simplifies transportation logistics and enhances operational efficiency.
Streamline Your Logistics Operations with ConFoot Legs
ConFoot represents a revolutionary and efficient solution for container handling. With its robust design, straightforward installation, and wide range of applications, it optimizes logistics processes and reduces costs dramatically.
Don’t wait—take advantage of the benefits that ConFoot container support legs offer! Experience firsthand how they can simplify your work processes and boost the efficiency of your business.
Contact us for a quote or more information and discover how ConFoot can transform your container handling.
